Sumore China cnc horizontal lathe machines price CK6136 cnc lathe machine with bar feeder sp2116

Product Description

Headman China cnc Horizontal Lathe machines price CK6136 CNC Lathe Machine with bar feeder sp2116

Sumore cnc lathe significantly improves the efficiency during all Lathe working processes, such
as, turning endface, taper or screws, spherical, external & internal cylindrical surfaces, and even
for multi-tool turning missions. Especially when mass production is required, Sumore CNC Lathe
will easily achieve both appreciable efficiency and impressive quality. applicati

* GSK & SIEMENS & FANUC Programming Systems
* Professional Electronic System
* Upgraded PC-based Controller
* High Rigidity Guide Way & Bed Construction
* Powerful Main Motor & Reliable Servo Motor
* High Precision for All Axes Movements
* Automatic Tool Charger & Multiple Tool Positions
* Cabinet Door Opening System & Considerable Safety Signs

Specification

Model	SP2116
Max. swing over bed	190/220mm
Rail width	330mm
Spindle bore	60mm
Spindle speed	150-2500rpm
Max. length of workpiece	750/1000/1500mm
Tool post station	4/6/8/10
tool section	20/25mm
Spindle motor	5.5kw
Min. setting unit of motor (X)cross	0.001mm
Min. setting unit of motor (Z)cross	0.001mm
Moving speed of (X)cross	4m/min
Moving speed of (Z)cross	6m/min
Tailstock sleeve dia.	Ø55mm
Tailstock sleeve taper	MT4
Tailstock sleeve travel	120 mm
Coolant motor power	120W
Voltage and Frequency	Customerized
Packing Size (LxWxH)	2300 x 1550 x 1950 mm
Net./Gross weight	1600 kg/1700kg

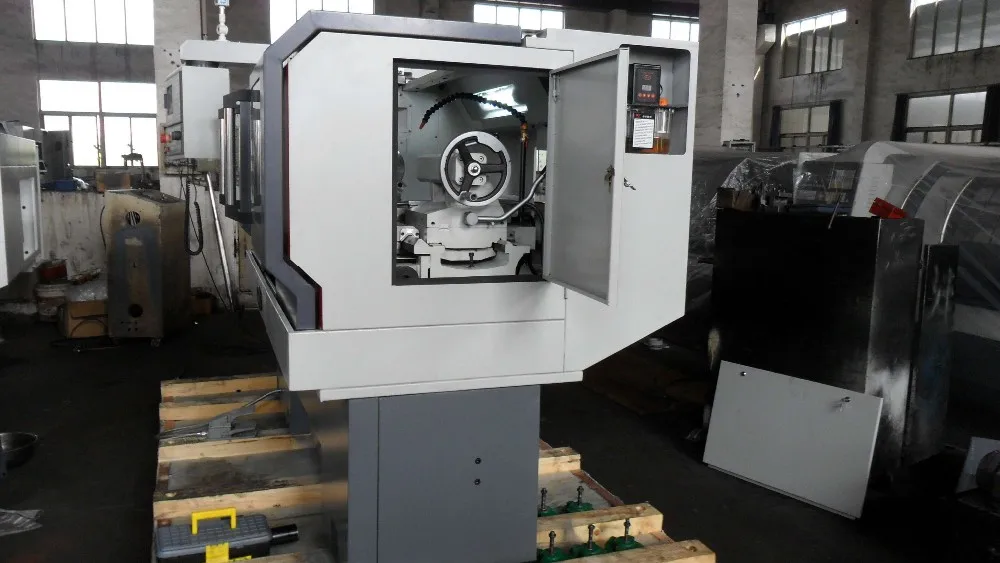

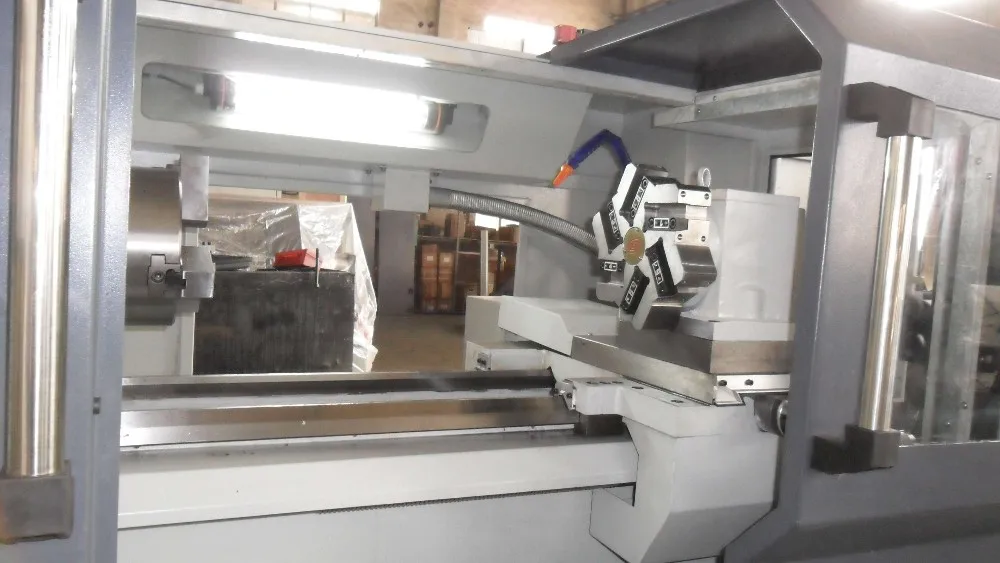

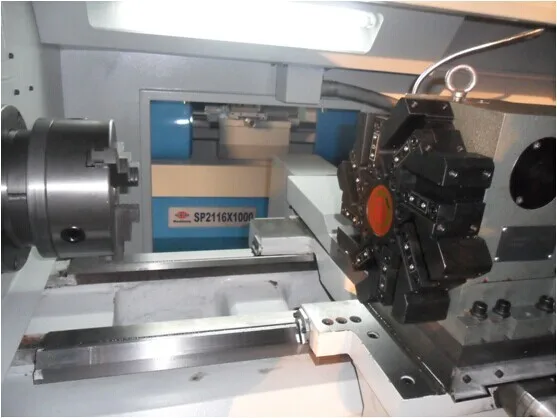

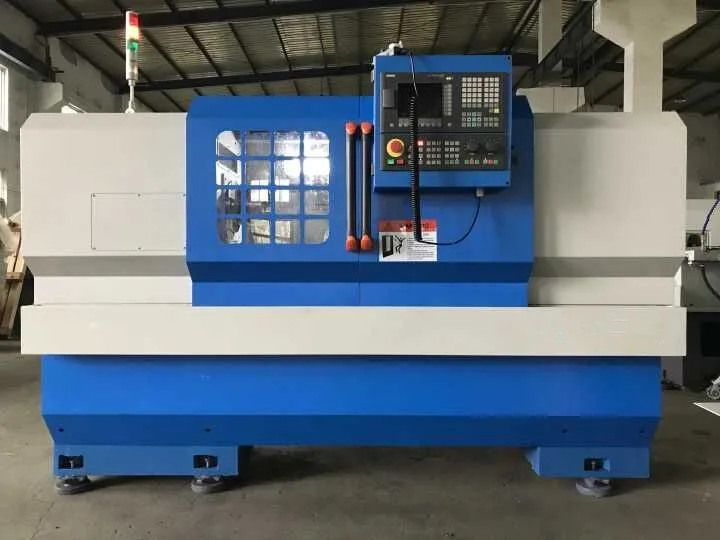

Details Images

Packing & Delivery

Company Profie

Shanghai Sumore Industiral Co,Ltd are one of the leading machinery groups specialized in producing heavy duty machines. Ourfactory mainly producing CNC lathe, CNC Milling Machine, CNC Vertical Machining Center, heavy-duty horizontal lathe and manual types We have a group of professional engineers in charge of technology, manufacture, installation and testing, so we can guarantee that our machines will put on good performance based on high quality. We can provide customers with full services and technicalconsultation upon different requests in 24 hours. Sumore would like to offer the best machines, and build ourselves as the bridge and window for both overseas and domestic enterprises and customers.

Contact us if you need more details on Cnc Lathe. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Cnc Horizontal Lathe Machine Price With Bar Feeder、Cnc Lathe Machine With Bar Feeder. If these products fail to match your need, please contact us and we would like to provide relevant information.
