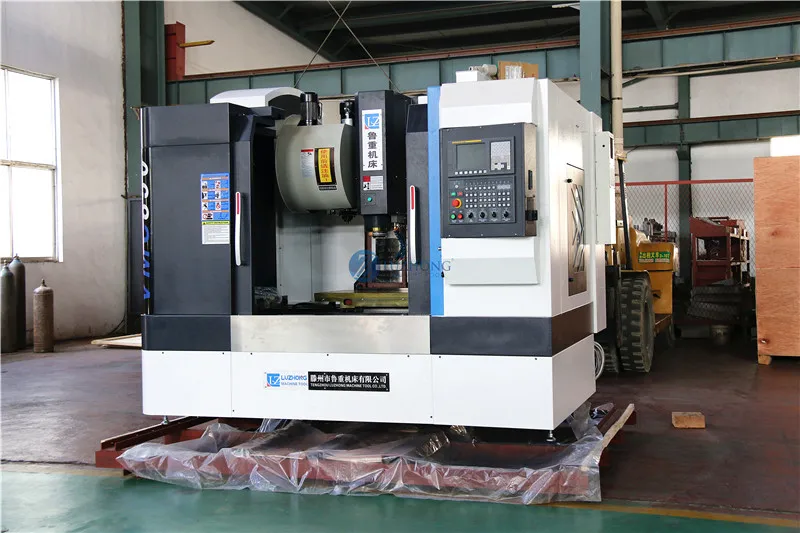

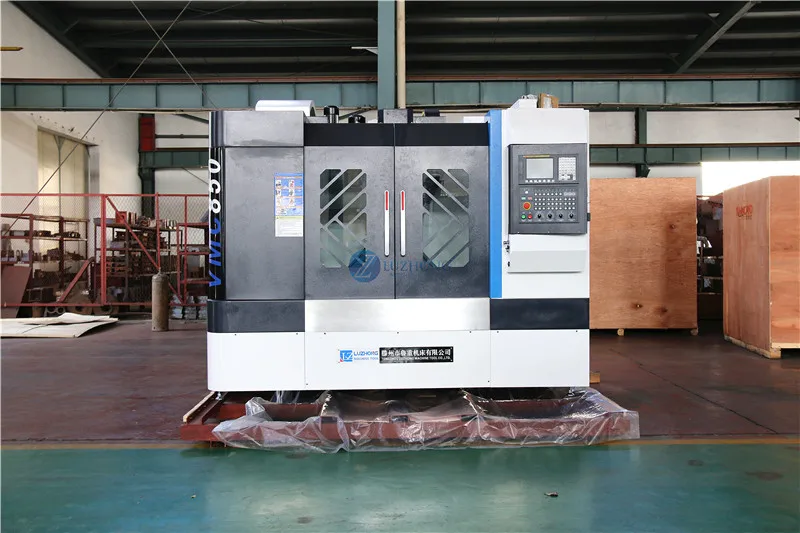

4 axis cnc vertical machining center VMC840 machining center cnc milling machine
Product Description
Product Description
Specifications | Units | VMC650 | VMC840 |
Table size | mm | 800x400 | 1000x400 |
X axis travel | mm | 650 | 800 |
Y axis travel | mm | 400 | 400 |
Z axis travel | mm | 500 | 500 |
Max. worktable load | kg | 400 | 450 |
T slot(number-width-pitch) | 3-18x125 | 3-18x130 | |
Max. spindle speed | rpm | 8000(Optional:10000 ) | 8000(Optional:10000 ) |
Spindle taper | mm | BT40 | BT40 |
Main motor power | kw | 5.5 | 5.5 |
X/Y/Z rapid traverse speed | m/min | 24/24/20 (Optional:48/48/36 ) | 24/24/20 (48/48/36 optional) |
Cutting feed speed | mm/min | 1-10000 | 1-10000 |
Guide rail type | Linear rail | Linear rail | |
Distance from spindle axis to column surface | mm | 469 | 520 |
Distance between spindle nose and worktable surface | mm | 100-600 | 130-630 |
Positioning accuracy | mm | ±0.0075 | ±0.0075 |
Repeat positioning accuracy | mm | ±0.005 | ±0.005 |
Tool magazine | 16 Armless/(Optional: Arm 24 ) | 16 Armless/(Optional: Arm 24 ) | |
Max. tool diameter | mm | φ90 | φ90 |
Max.tool weight | kg | 8 | 8 |
Machine weight | kg | 4000 | 4200 |
Overall dimension | mm | 2400x2000x2550 | 2500x2050x2550 |
Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center , Lathe Machines ,Drilling Machine ,Radial Drilling Machine , Sawing Machine , Shaper Machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center , Lathe Machines ,Drilling Machine ,Radial Drilling Machine , Sawing Machine , Shaper Machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
