1)A kind of combination machines with turning, milling, drilling and threading.
2)Metric or imperial thread cutting
3)Suitable for processing metal, wood and other materials
4)Excellent advantage of various functions, small occupation and economization
5)Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils' making, etc.
All Categories

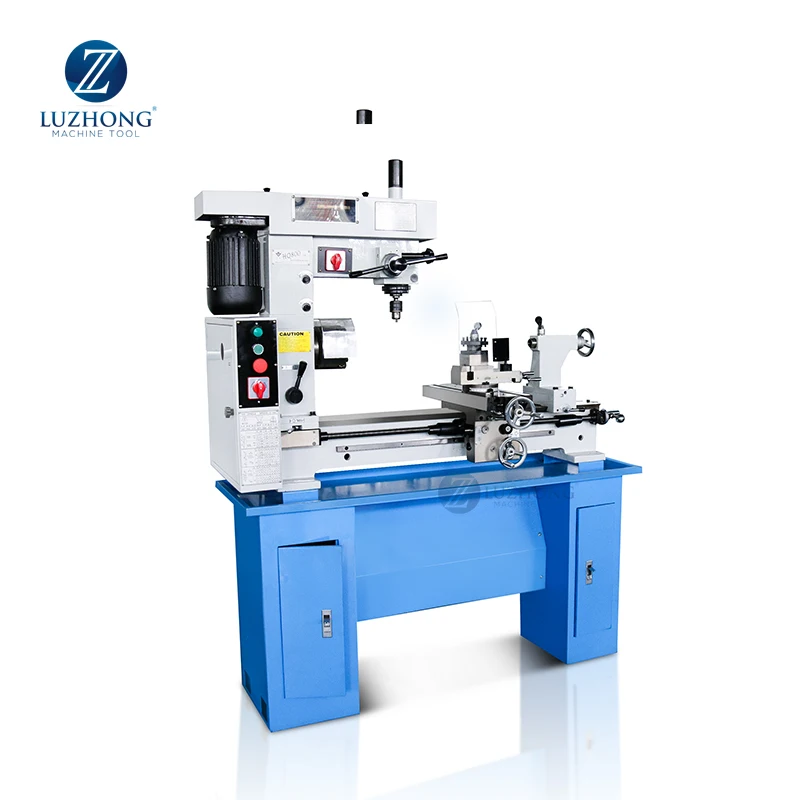

Metal Cheap HQ500 HQ800 Combination Lathe Milling Machine price
Product Description
Products Description
The main performance characteristics：
Specifications | HQ500 | HQ800 | ||
Turning | Swing over bed | φ 420mm | ||
Distance between centers | 500mm | 800mm | ||
Max. longitudinal travel | 440mm | 740mm | ||
Max. cross travel | 200mm | |||
Taper of spindle | M. T. 4 | |||
Spindle hole | φ 28mm | |||
Step of spindle speed | 7 steps | |||
Range of spindle speed | 160-1360RPM | |||
Barrel travel | 70mm | |||
Taper of center | M. T. 3 | |||
Metric thread range | 0.2-6mm | |||
Inch thread range | 4-120T. P. I | |||
Longitudinal range of automatic feeding | 0.05-0.35mm/0.002-0.014＂ | |||
Cross range of automatic feeding | 0.05-0.35mm/0.002-0.014＂ | |||
Drilling & Milling | Max. drilling capacity | φ 22mm | ||
Worktable size (L*W) | 475× 160mm² | |||
Max. end mill | φ 28mm | |||
Max. face mill | φ 80mm | |||
Distance between spindle center and column | 285mm | |||
Distance between spindle and worktable | 306mm | |||
Headstock travel of up and down | 110mm | |||
Spindle taper | M. T. 3 | |||
Step of spindle speed | 16 | |||
Range of spindle speed | 120-3000r. p. m | |||
Swivel degree of headstock | ± 360° | |||
Motor | Motor power | 0.55Kw | ||
Shipping data | Packing size | 1130×580×1100mm(HQ800:1430×580×1100mm) | ||
N. weight/G. weight | 245kg/280kg(HQ800:275kg/325kg) | |||

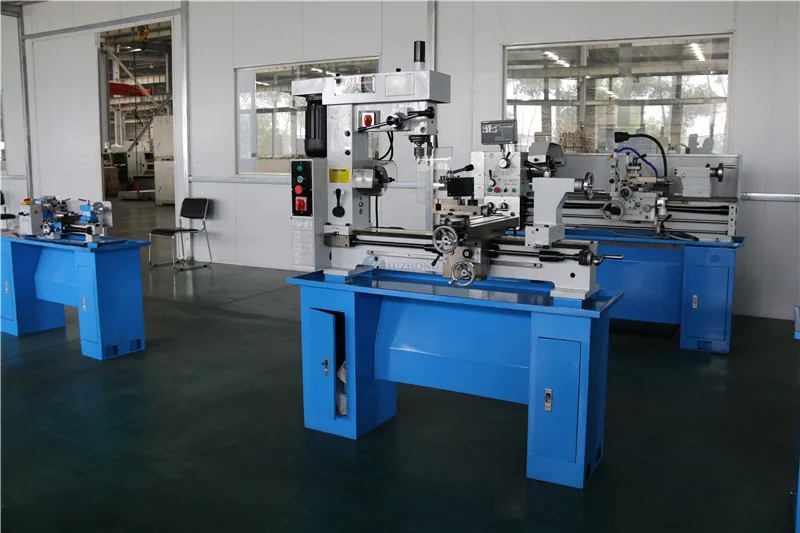

Details Display
