High quality 8mm lead screw Tr8x24 for CNC Machine

  • High quality 8mm lead screw Tr8x24 for CNC Machine
  • High quality 8mm lead screw Tr8x24 for CNC Machine
  • High quality 8mm lead screw Tr8x24 for CNC Machine
  • High quality 8mm lead screw Tr8x24 for CNC Machine

High quality 8mm lead screw Tr8x24 for CNC Machine

Product Description



   8mm lead screw for Tr8x24









Our advantage

We are the professional manufacturer in China for precision ball screw,precision mini ball screw,precision lead screw with more than 15 years experience!We accept customized products!Welcome send us your drawings to design your target products!

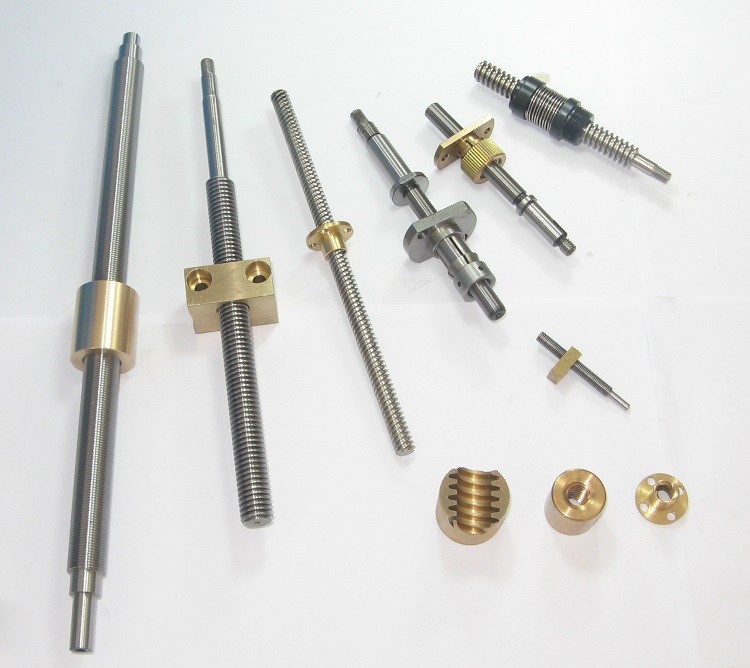

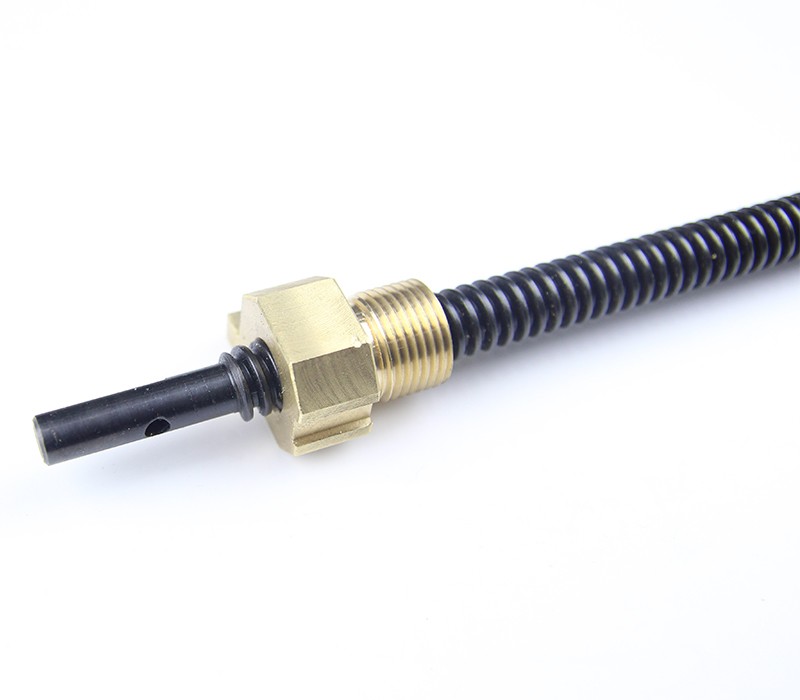

Product pictures






Description on 8mm lead screw with trapezoidal thread







Product  Model Pitch Starts Length Profile Material Production Technology
Lead Screw Tr8x24 4mm 6 Customized ISO Standard Trapezoidal Thread 45Carbon Steel, SUS303, SUS304 or others Cold rolling

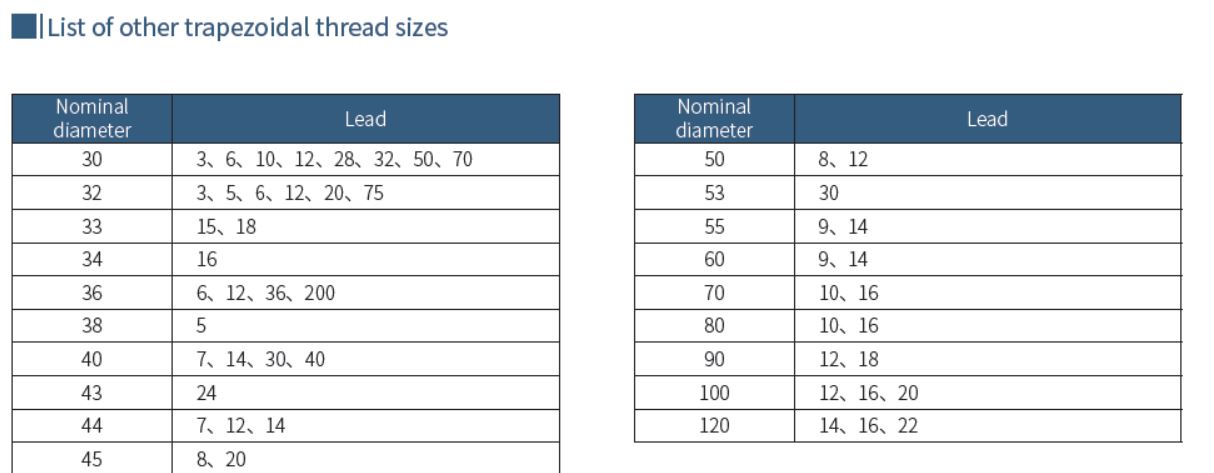

Other sizes, dimensions and shapes are available upon request!

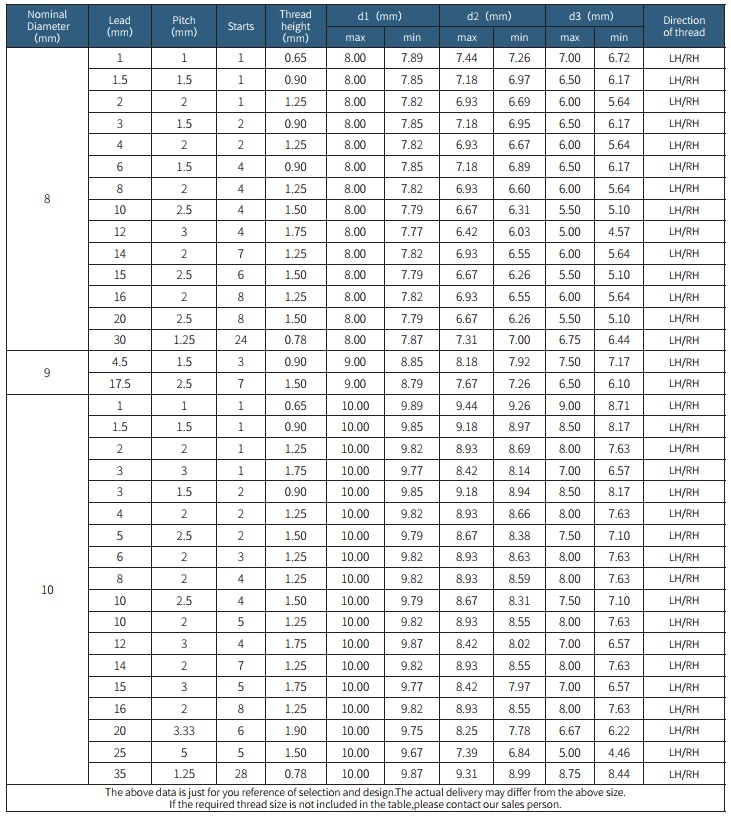

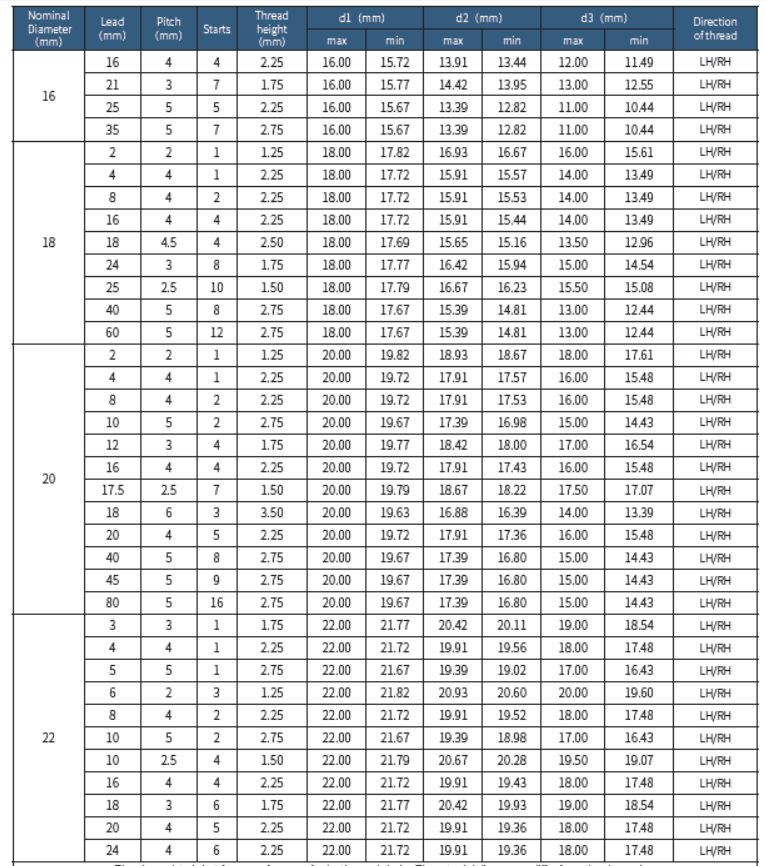

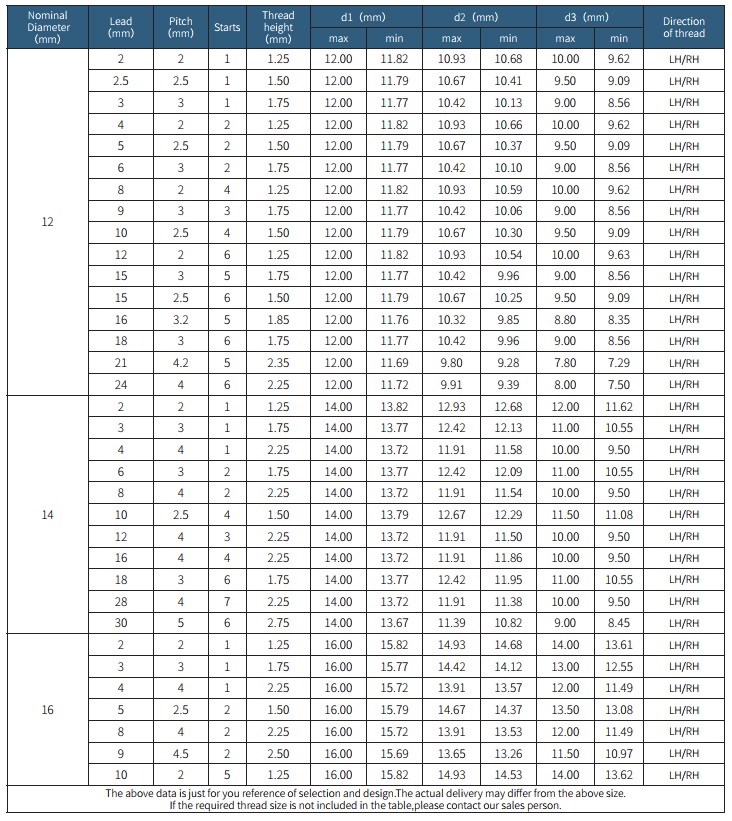

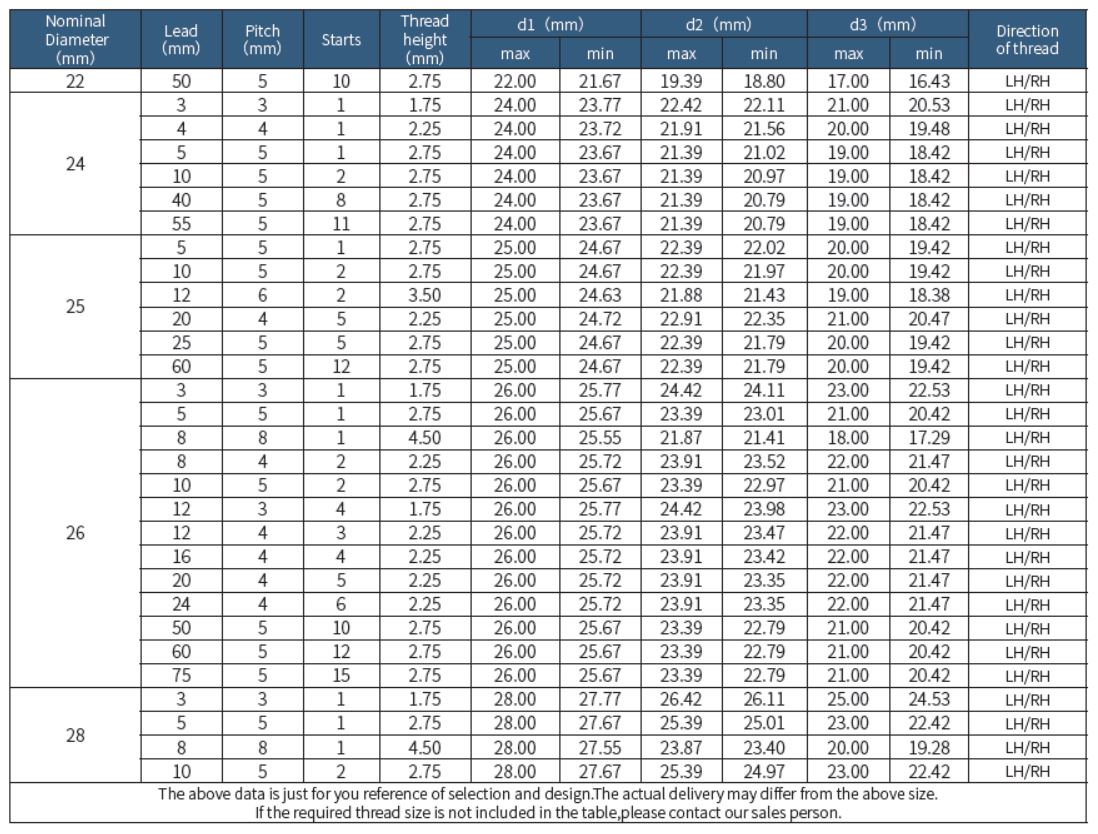

Part of the hot sale models,maybe some is also workable for you!





No

Thread type

Thread direction

Shaft diameter

Lead

Pitch

Start

Material

1

A

RH

3.175

4

1

4

SS

    2

A

RH

4.76

0.635

0.635

1

SS

3

A

RH

5

2

1

2

SS

4

A

RH

5.56

4.8768

1.2192

4

SS

5

Tr

RH

5.56

9.75

1.21875

8

SS

6

A

RH

6.35

2

1

2

SS

7

Tr

RH

6.35

3.175

1.5875

2

SS

8

Tr

RH

6.35

12.7

2.54

5

SS

9

Tr

RH

6.5

3

1.5

2

SS

10

Tr

RH

8

2

2

1

SS

11

Tr

RH

8

4

2

2

SS

12

Tr

RH

8

8

2

4

SS

13

Tr

RH

8

12

2

6

SS

14

Tr

RH

8

20

3.33

6

SS

15

Tr

RH

9

4.762

1.5875

3

SS

16

Tr

RH

10

2

2

1

SS

17

Tr

RH

10

4

2

2

SS

18

Tr

RH

10

10

2

5

SS

19

Tr

RH

10

12

2

6

SS

20

Tr

RH

10

20

3.33

6

SS

21

Tr

RH

10

25

5

5

SS

22

Tr

RH

11

2

2

1

SS

23

Tr

RH

11

4

2

2

SS

24

Tr

RH

11.9

6.35

1.5875

4

SS

25

Tr

RH

15

7.9375

1.5875

5

SS

26

Tr

RH

15

12

4

3

SS

27

Tr

RH

16

9

4.5

2

SS

28

Tr

RH

17.41

9.525

1.5875

6

SS

29

Tr

RH

18

12.7

1.5875

8

SS

30

Tr

RH

20

4

4

1

SS









General Purpose Lead Screw Nut





General Purpose Nutis fit for lead screws of trapezoidal thread, STT thread, acme thread and other standard or nonstandard thread, which don’t require anti-backlash and wear compensation. It offers axial clearance from 0.075mm to 0.18mm.

Properties:

1.    Standards: ISO2901-4, DIN103, GB/5796; Clearance: 7H. Higher tolerances can be acquired upon request.



2.    The popular material can be bronze, brass, casting iron, alloy steel, POM (Derlin, Acetal), PA6 (PA66, Nylon) and other polymer plastic materials.



3.    High quality materials, strict quality control and precision machining ensure the best performance.



4.    Working temperature: 15to 350for metal nut, and 15 to 175 for plastic nut.

Suggestions:the lead screw assembly should be replaced by new set once the axial clearance is 1/4 or more of the pitch.

Note: all dimensions, unless marked, in mm.













More detail for lead screw

1. Material: 1045 Carbon Steel, SUS303, SUS304 or others.

2. 2 starts, 3 starts, 4 starts and more are all available.

3. Major diameter: 2mm-200mm, Lead: 1mm-22mm.

4. Max length: 6 meters.

5. Left hand thread is available upon request.

6. Acme thread, square metric and other non-standard thread profiles are available upon drawings.

7. Higher Precision Grade is available upon request.







Application



Automatic controlling machines, cnc machine, cnc Lathe, semi-conductor industry, general industrial machinery, machine tools, medical equipments, parking systems, measuring instrument, printing machine, stepper motor, ect,,







Our product series



1.BALL SCREW:

SFU SERIES, SFE SERIES, M-ISNF SERIES, M-ISNA SERIES, M-CSNF SERIES BALL SCREW, HIGH SPEED BALL SCREW, MICRO BALL SCREW,,,



2.STAINLESS STEEL SUS303, SUS304 OR GCR15 LEAD SCREW



3.AKD SUPPORT UNIT OF BALL SCREW, LEAD SCREW



4.HIWIN LINEAR GUIDEWAYS



5.FLEXIBLE COUPLING





BALL SCREW SERIES












AKD SUPPORT UNIT SERIES





 HIWIN Linear Guideways





Flexible Coupling

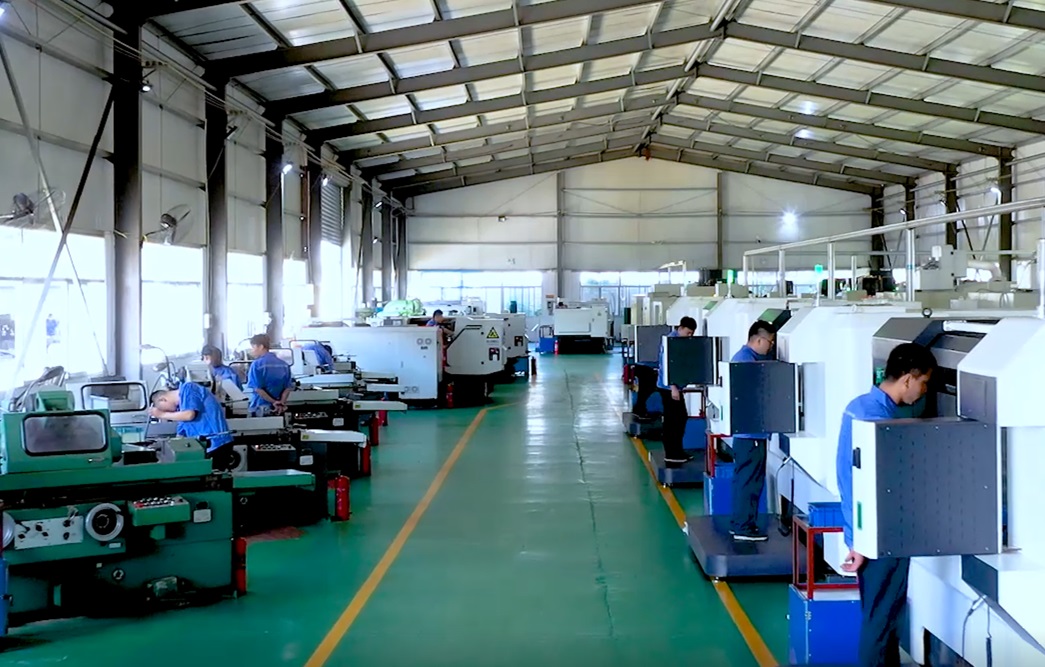

 Workshop











Why choose us ?

1. Screwtech designs, manufactures, supplies a complete selection of inch and metric linear mechanical parts and systems to the Linear Motion and Power Transmission Industries.

We accept customised upon receiving your drawing!



Our products include:



1)Miniature Ball Screw with diameter from 4mm-16mm, lead from 1mm to 10mm.



2)Stainless Steel or 1045 Steel Lead Screw with POM or Brass Nut, diameter from 3.5mm to 80mm



3)Stainless Steel Ball Screw, Lead Screw



4)AKD Support Unit of Ball Screw, Lead Screw



5)HIWIN Linear Guideways



6)Stepper Motor



7)Flexible Coupling of ball screw



2.We provide the best service for you!



1) We have a group of professional engineers we can provide drawings according to customer's requirements.



2). We have more than 20 machines for offering professional lead screw and ball screw end machining service.



3). We can rebuild, refurbish, and make emergency repairs to lead screw,  ball screw and linear guideways.



4). We can disassemble, clean, polish lead screw,  linear guideways and lead screw, ball screw

5). Two years free maintenance to lead screw , ball screw and one years free maintenance to linear guideways.



3.Competitive price

Screw Technology is a manufactory which can export directly to customer, so there is no intermediary cost involved. We provide our foreign customer lower price than the domestic market. Since we can get tax refund from the government.







Package and delivery













SCREW TECHNOLOGY CO., LIMITED

 We SCREWTECH is the professional manafacturer of lead screw, ball screw, bearing product, linear Motion parts.
Our company has more than 14years experience on ball screw manufacturer industry and we are top3 manufacture of ball screw. Our Ball Screw can replace HIWIN, TBI, KSS, THK these brand directly.

Our main advantages are Ready stock, Customized design and Competitive price. The leading time is 7-30days for different models.
We could produce 30,000-40,000 sets of ball screws and other products every month and we have more than 2,000 items products.

Our company has passed IATF16949 Certification, which means our product can meet auto mobile industry standard, and very few Automatic Company in China have it since it is a strict standard system.

Here we want to check with your sides is there any projects we can work together.
Any feedback you can give would be greatly appreciated. Thanks!
