72 column 66kgs square table drill press zj5116 cheap drill press SP5216C-II drill press precision
Product Description
Popular 72 column 66kgs square table drill press zj5116 cheap drill press SP5216C-II drill press precision
Products Description
Quick Detail:
Drilling capacity: Ø16mm (5/8")
Motor power: 375/450/550W
Class of Speed: 16
Spindle taper: MT2
Description:
SP5216C-II bench drill press, Bench Drilling Machine belongs to one of our most economic manual bench drill press, bench Drilling Machine. It is new condition not used bench drill press. And it is small in size and delicate in design. This bench drill press, bench drilling machine is made in China. The main features are as below:
1. Very good quality
2. Fast opened or locked pulley cover;
3. Variable speed system-pagoda pulley;
4. Three-spoke feed handle and external depth stop;
5. Control panel for easy operation;
6. Continuous-duty motor;
7. Chuck guard for safety;
8. Cross laser guided available
9. Rack&pinion for accurate height adjustments;
10. Swivel knob;
11. Study cast iron base..
Drilling capacity: Ø16mm (5/8")
Motor power: 375/450/550W
Class of Speed: 16
Spindle taper: MT2
Description:
SP5216C-II bench drill press, Bench Drilling Machine belongs to one of our most economic manual bench drill press, bench Drilling Machine. It is new condition not used bench drill press. And it is small in size and delicate in design. This bench drill press, bench drilling machine is made in China. The main features are as below:
1. Very good quality
2. Fast opened or locked pulley cover;
3. Variable speed system-pagoda pulley;
4. Three-spoke feed handle and external depth stop;
5. Control panel for easy operation;
6. Continuous-duty motor;
7. Chuck guard for safety;
8. Cross laser guided available
9. Rack&pinion for accurate height adjustments;
10. Swivel knob;
11. Study cast iron base..

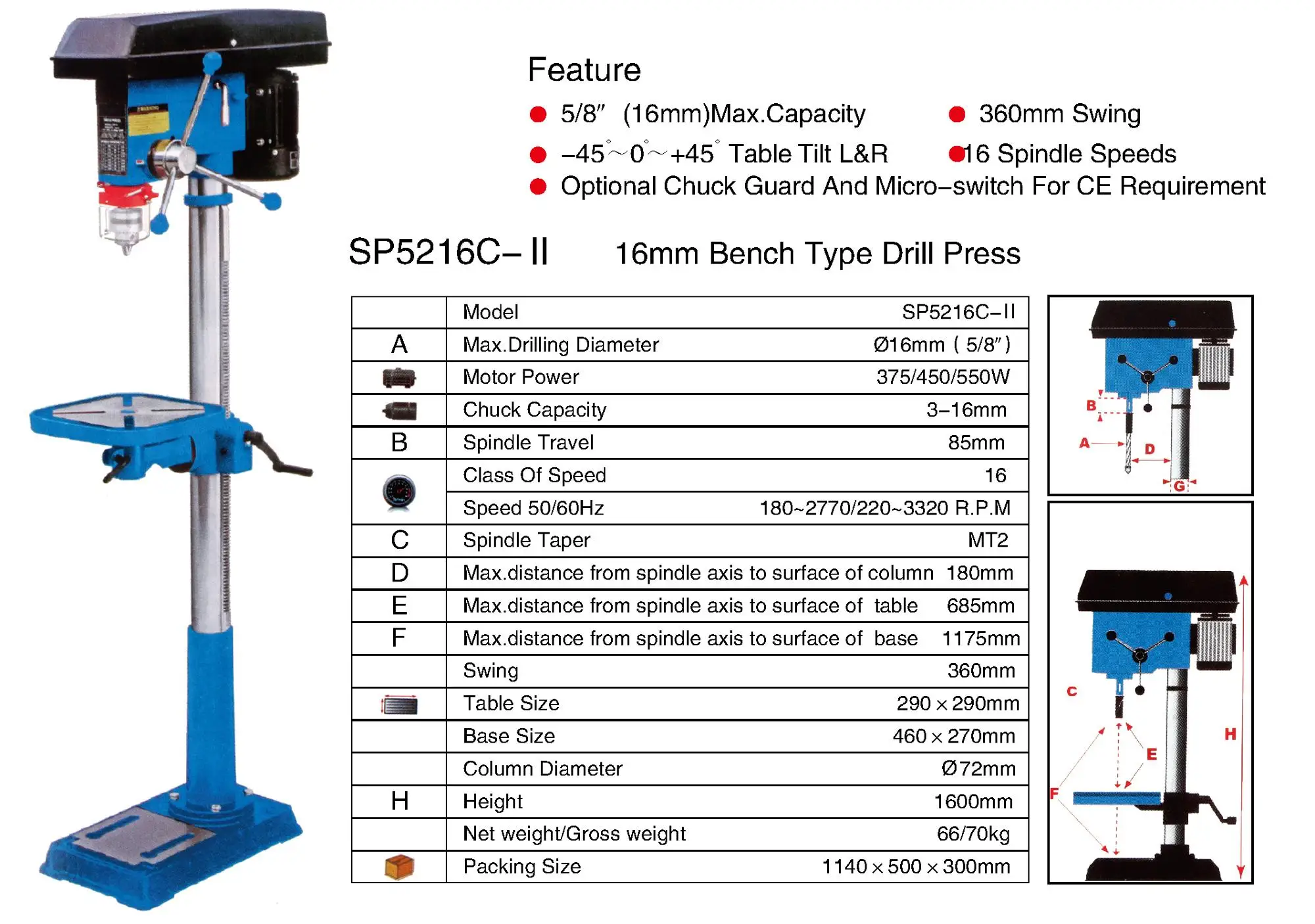

Specification
Model | SP5216C-II |
Drilling capacity | Ø16mm(5/8") |
Motor power | 375/450/550W |
Chuck Capacity | 3-16mm |
Spindle stroke | 85mm |
Class Of Speed | 16 |
Speed 50/60Hz | 180~2770/220~3320 R.P.M |
Spindle taper | MT2 |
Auto-feeding step of worktable | 180mm |
Max.distance from spindle end to surface of table | 685mm |
Max.distance from spindle end to surface of base | 1175mm |
Swing | 360mm |
Table size | 290X290mm |
Base Size | 460X270mm |
Column Diameter | Ø72mm |
Height | 1600mm |
N.W./G.W. | 66/70kg |
Packing size | 1140X500X300mm |
