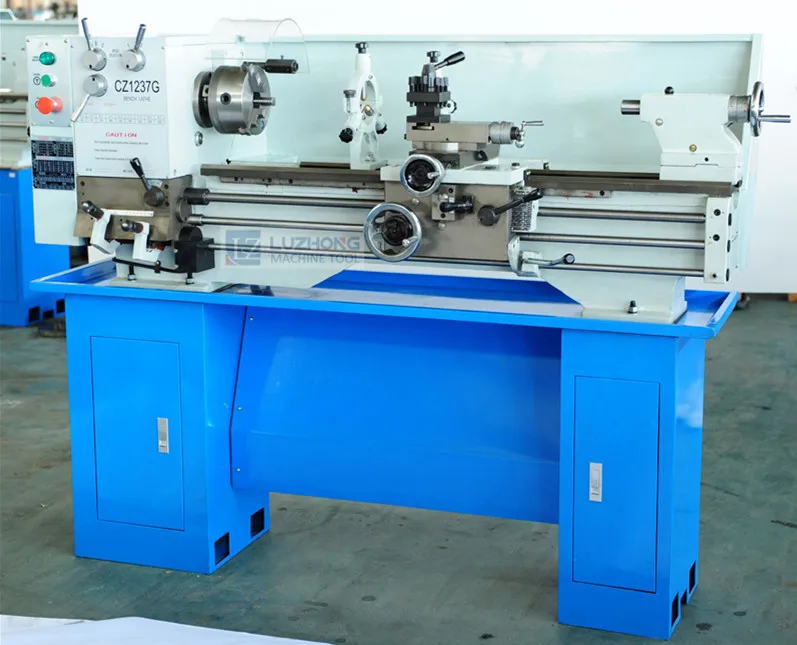

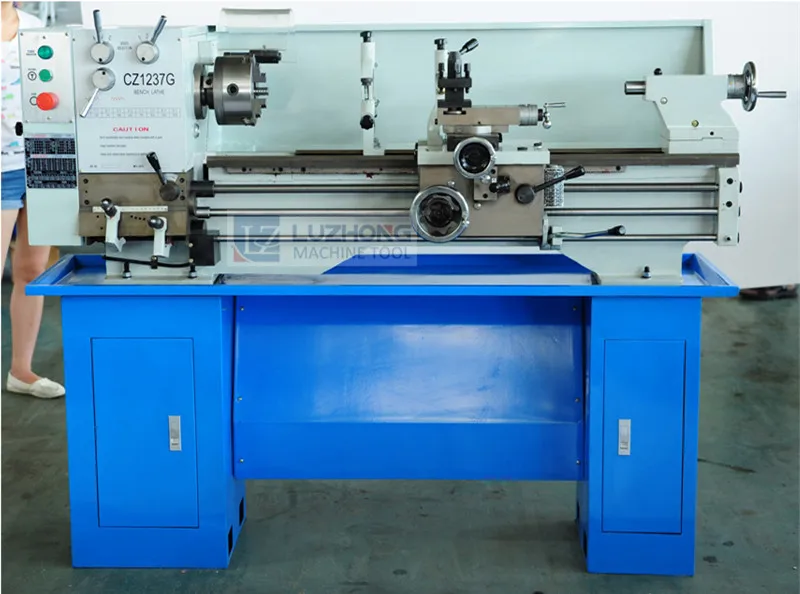

CZ1337G torno portatil tornio per metallo mini lathe machine bench

Product Description

Products Description

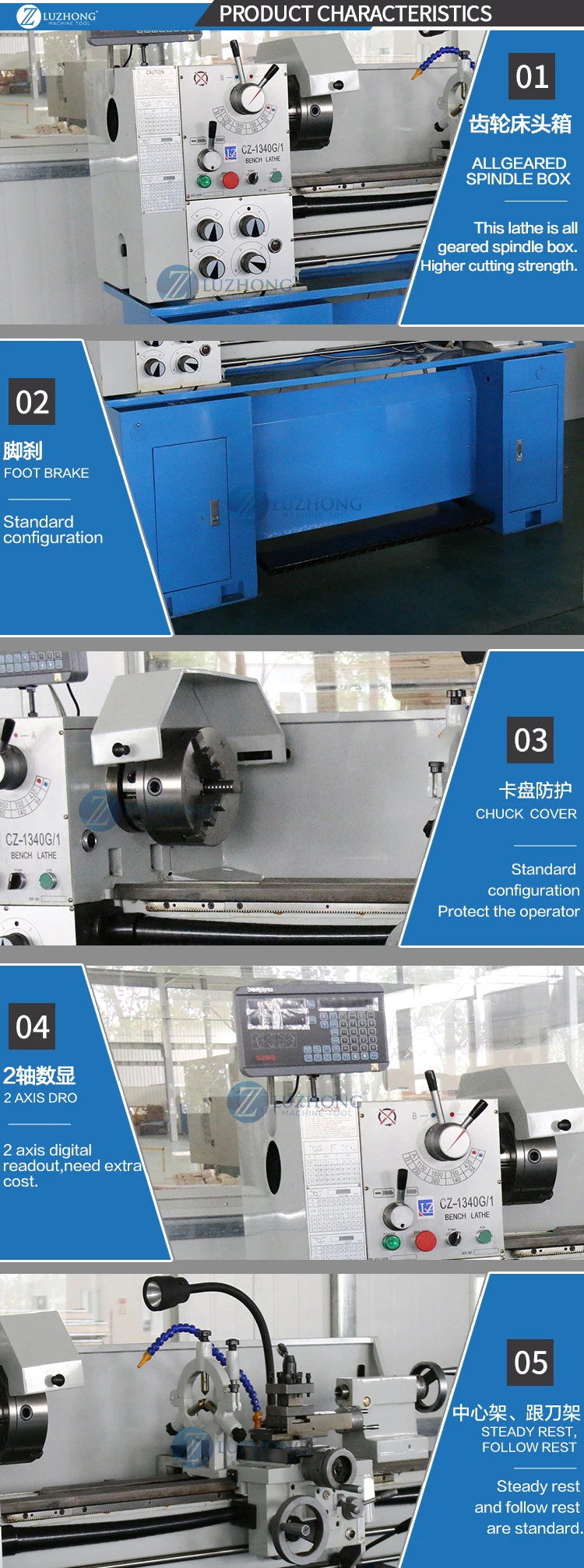

The main performance characteristics：
1.Engineered from high grade castings
2.V way bed ways induction hardened and ground
3.Gap bed
4.Cross and longitudinal interlocking feed, enough safety
5.Inching switch for test running
6.Metric/Imperial threading available
7.Precise gear-driven headstock

Specifications		CZ1337G
Swing over bed	mm	330
Swing over carriage	mm	215
Swing over gap	mm	485
Width of bed-way	mm	182
Distance between centers	mm	940
Spindle taper		MT5
Spindle bore	mm	38
Step of speed		9
Range of speed	rpm	64-1500
Metric thread	mm	Closed box:11kinds(0.5~43.5)
Metric thread	mm		Norton box:15kinds(0.25~47.5)
Inch thread	T.P.I	Closed box:14kinds(7-1/2~48)
Inch thread	T.P.I		Norton box:40kinds(4~112)
Range of feed amount	Mm/r	Closed box:0.051~0.303(0.002’’-0.012’’)
Range of feed amount	Mm/r		Norton box:0.12~0.42(0.0047’’-0.0165’’)
Diameter of lead screw	mm	22(7/8’’)
Pitch of lead screw		3mm or 8 T.P.I
Saddle travel	mm	510
Cross travel	mm	150
Compound travel	mm	85
Barrel travel	mm	95
Barrel diameter	mm	32
Taper of center	mm	MT3
Motor power	Kw	1.1(1.5HP)
Motor for coolant system’s power	Kw	0.04(0.055HP)
Machine(L×W×H)	mm	1420x750x760
Stand (left)(L×W×H)	mm	400x370x700
Stand (right)(L×W×H)	mm	300x370x700
Machine	Kg	380/430

Details Display

Recommend Products

Company Profile

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper Machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
