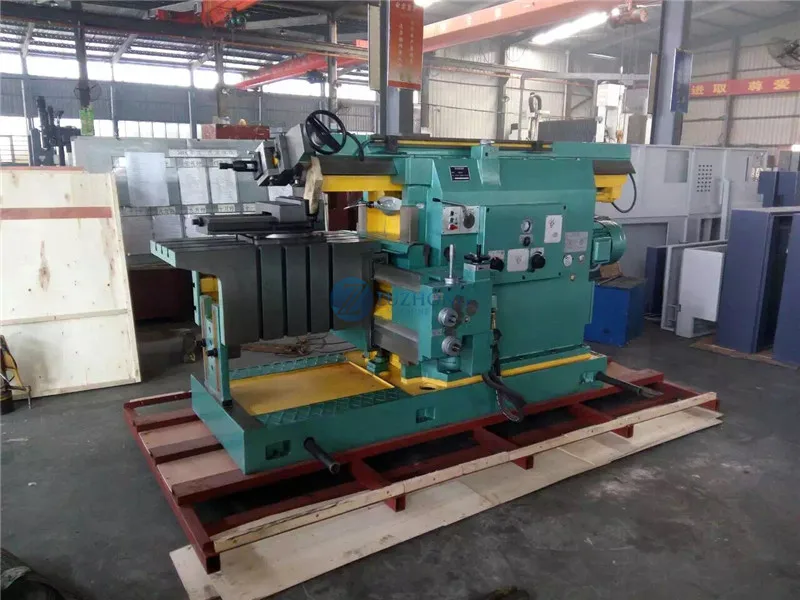

Automatic shaper machine BY6090 Gear shaper machine
Product Description
Product Description


Specification
Product main features:
1.The machine is used in a variety of cutting and forming flat surface, suitable for single and small batch production.
2.Bed key pieces of tempering, vibration aging, super audio quenching heat treatment process, makes the machine more stable
accuracy, longer service life.
3.The main cutting movement and feed movement are hydraulic transmission, can be step less speed regulation, with the hydraulic
overload insurance device, the rotation is stable, the ultra small amount, starting and stopping the flexible and reliable,
machine tools, good rigidity, cutting force,
For high precision, low oil temperature, thermal deformation, small precision and stability, can be applied to continuous strong
cutting work.
4.Machine tool can achieve rapid horizontal and vertical movement, with automatic tool to lift the machine tool, machine tool set
up, easy to operate, high degree of automation
Product main technical specification:
1.The machine is used in a variety of cutting and forming flat surface, suitable for single and small batch production.
2.Bed key pieces of tempering, vibration aging, super audio quenching heat treatment process, makes the machine more stable
accuracy, longer service life.
3.The main cutting movement and feed movement are hydraulic transmission, can be step less speed regulation, with the hydraulic
overload insurance device, the rotation is stable, the ultra small amount, starting and stopping the flexible and reliable,
machine tools, good rigidity, cutting force,
For high precision, low oil temperature, thermal deformation, small precision and stability, can be applied to continuous strong
cutting work.
4.Machine tool can achieve rapid horizontal and vertical movement, with automatic tool to lift the machine tool, machine tool set
up, easy to operate, high degree of automation
Product main technical specification:
Specifications | Units | BY6090 |
Maximum shaping length | mm | 900 |
Max .table horizontal travel | mm | 600 |
Distance from lower edge of ram to upper surface of table | mm | 450 |
Max .table vertical travel | mm | 400 |
Upper working surface of table(L x W) | mm | 900×400 |
Max. travel of tool post | mm | 150 |
Travel of tool head | ° | ±60° |
Maximum section of size (W*T) | mm | 22×30 |
Table range of horizontal feed of ram reciprocation per minute | mm | 0.25-1.8 |
Feeding range of horizontal (12steps) | Step less | |
Maximum working force | kg | 1500 |
Maximum loading weight on worktable | kg | 200 |
Speed of rapid travel horizontal table | 1.57 | |
Speed of rapid travel vertical table | 0.35 | |
T-slots width | mm | 18 |
Main motor power | KW | 4 |
Fast motor power | KW | 0.75 |
N/G.W | kg | 2700/2850 |
Overall dimensions(L x W x H) | mm | 2670×1350×1600 |
Recommend Products
Company Profile

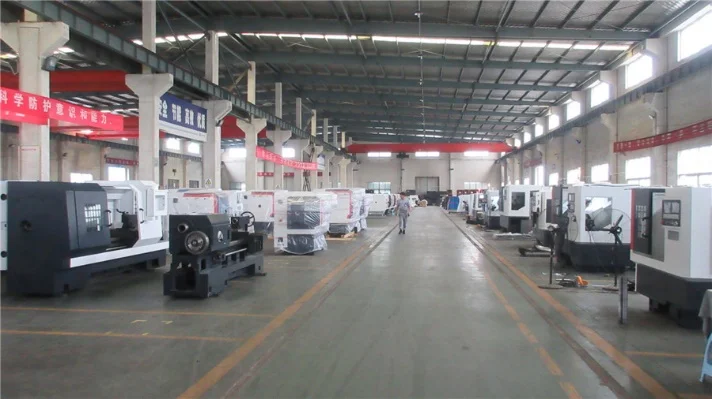

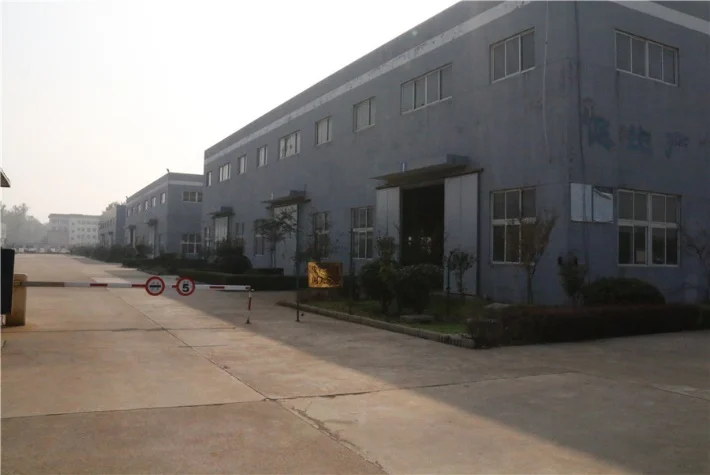

Shandong Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprisewith glorious chievement and long history .Founed in 1992 ,company covers an area of 150 thousand square meters, the construction covers area of 70 thousand square meters. Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and Others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates . Our company formed a good win-win relationship with domestic and foreign sales agents.Our company not only has formed a mature sales network in China, but also signed sales agency contracts with copanies from more than 100 foreign countries, and our machines has been exporting to Europe, Asia, Africa, South America, North America, Australia and other zones for more than 20 years ,and have been trusted and praised by vast number of users Our company focuses on strict and effective management,system, strict audit machines' quality ,try not to let out a detail, and make the machines more refined and finer .Service is our eternal theme of the pursuit ,our compamy have many overseas service personnel in many countries .Our company can also procide OEM and ODM service . Our company is always adhering to the "THE BEST QUALITY ,CREATED BY LUZHONG " purposes, to provide better quality machines ,more efficient and thoughtful after-sale service to customers . With your support, we will make great progress. Let's join hands and create a better future! "THE BEST QUALITY ,CREATED BY LUZHONG"
